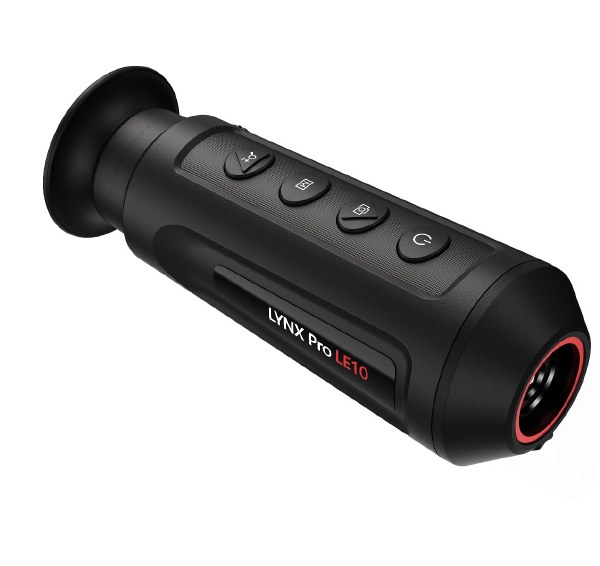

HIKMICRO Lynx-S PRO 10mm Smart Thermal Monocular

Joining the range of HIK Micro thermal monoculars – the Lynx-S LE10 is focused on delivering high-level thermal performance at an entry-level price point.

hik

At the heart of this enhanced performance is the 256 x 192, 12um sensor, this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.

The Lynx-S 10mm offers the same software as the more expensive HIK models and includes 4 colour palettes, white-hot, black hot, red hot and fusion. The LE10 can also record video or images with the onboard memory or connect to the T-Vision app to seamlessly share or record your shooting experience.

The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify them.

More Information
More Information
Brand HIKMICRO
Product Name A-Z HIKMICRO Lynx-S PRO 10mm Smart Thermal Monocular
SKU HM-LE10
Unit Type Thermal
Colour Palettes Yes
Detection Range 450m
Display Resolution 720x540
Display Type LCOS
Magnification (Digital) 8x
Magnification (Optical) 1x
NETD <35mK
Objective Lens Diameter 10mm
Operating Temperature -20/+55°C
Pixel Pitch 12μm
Refresh Rate 25HZ
Sensor Resolution 256x192
Video Recording Yes
WiFi Yes

Specs
Main

Sensor: 256x192px @ 12µm
Objective Lens (Focal Length): 10 mm
Detection Range (Human 1.8m x 0.5m): 458 m

Sensor

Type: VOx Uncooled Focal Plane Arrays
Resolution, pixels: 256 x 192 PX
Pixel pitch, um: 12µm
Frame rate, Hz: 25 Hz
NETD: <35mK

Optics

Objective lens: F1.0
Magnification (optical): 1x
Magnification (Digital): 1x, 2x, 4x, 8x
Field of view: 18.00° × 13.55° (H × V)°

Display

Type: 5.08mm, LCOS
Resolution, Pixels: 720 × 540
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

Video Recorder

Built-in memory, GB: 8

Additional features

Hot tracking: Yes
WIKI Hot spot: Yes
T-Vision App support: Yes

Environmental

Degree of protection, IP code: IP67
Dust protection: Protected against dust ingress
Water protection: Protected against temporary submersion in water
Operating temperature range: -20 °C to 55 °C

Weight & size

Dimensions, mm: 158 mm x 61 mm x 57 mm
Weight, Kg: 0.26 kg

Power Supply

Operating time on battery (WIFI & Hot tracking disabled): 8 Hours continuous running
Charging interface: USB-C
Battery capacity after 1000 cycles: 80%

Warranty

Main Unit: 3 Years
Battery: 2 Years

Features
10mm focal length - 1.0 Aperture
256x192px sensor
12um pixel pitch
Pocket sized
Wifi Enabled
458m detection range - Human Size
25hz Refresh rate
4 colour palletes
Around a 150m Detection Range - Fox
35mK Sensitivity
