DJI Matrice 4TD Thermal Drone Standalone Package Excluding Battery

DJI Matrice 4TD Thermal Drone standalone package excluding batteries

IP55 Matrice 4TD drone, 1 Year of DJI Care Enterprise Plus, ready to pair with Dock 3
Versatile Six-Sensor Payload: Includes a wide-angle camera, dual optical zoom lenses (3x and 7x), a thermal sensor, NIR auxiliary light, and a laser rangefinder for enhanced data collection.
Exceptional Nighttime Imaging: Designed for superior performance in low-light conditions with advanced thermal imaging and upgraded NIR illumination technology.
Smart AI Detection: Leverages AI-driven algorithms to identify people, vehicles, and Boats, with the ability to integrate custom object recognition models.
Advanced Safety & Navigation: Features GNSS+Vision positioning, automatic obstacle detection, and a five-directional vision assist system for precise and secure flights.

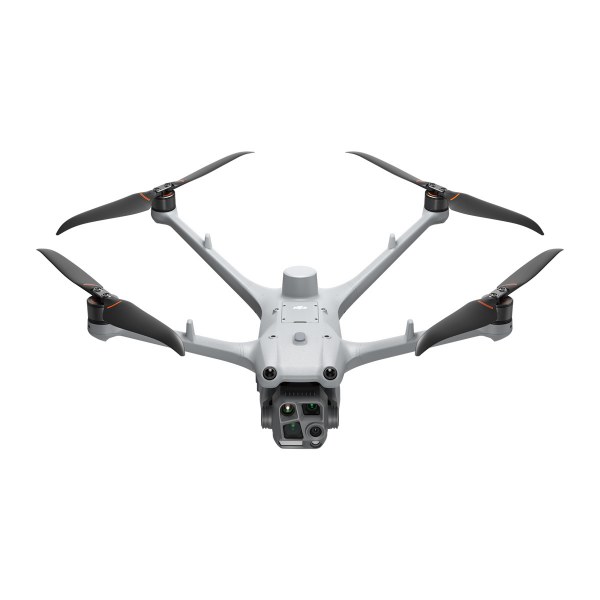

The DJI Matrice 4TD is a high-performance, IP55 rated enterprise drone designed for to be paired with the new Dock 3. This package excludes the Dock 3 and a battery. Its six-module payload includes a wide-angle camera, 3x and 7x optical zoom lenses, a thermal sensor, NIR auxiliary light, and a laser rangefinder. Its robust design ensures it operates in more demanding weather conditions, including rain, low light, and extreme temperatures. This resilience makes the Matrice 4TD especially suitable for operations in harsh environments, where thermal detection is critical for identifying heat sources, finding people, or conducting damage assessments in disaster zones.

Equipped with a high-resolution thermal camera, the Matrice 4TD detects heat signatures in darkness or obscured conditions. Its advanced NIR illumination enhances visibility, making it ideal for search and rescue, night surveillance, and infrastructure monitoring. This ensures critical data collection in low-light environments.

Its AI-powered recognition and advanced navigation enhance safety and efficiency. The drone automatically detects and tracks people, vehicles, and ships, with support for custom object detection. GNSS+Vision positioning, automatic obstacle detection, and five-directional vision assist ensure precise, secure flights, even in complex scenarios.

The Matrice 4TD is a game-changer for wildlife management, search and rescue, and surveying. It helps conservationists monitor wildlife, assists in finding missing persons with thermal imaging, and enables accurate 3D mapping for environmental and infrastructure analysis. Its real-time data capabilities improve decision-making and operational success across industries.

Weight
1850 g
Max Takeoff Weight (Standard Propellers)
2090 g
Dimensions
377.7×416.2×212.5 mm (L×W×H)
Diagonal Wheelbase
438.8 mm
Front Motor Left-Right Wheelbase
383.0 mm
Rear Motor Left-Right Wheelbase
343.0 mm
Front-Rear Wheelbase
341.6 mm
Max Ascent Speed ( Normal Mode)
6 m/s
Max Ascent Speed ( Sport Mode)
10 m/s
Max Descent Speed ( Normal Mode)
6 m/s
Max Descent Speed ( Sport Mode)
8 m/s
Max Wind Speed Resistance
12 m/s
Max Flight Time
54 minutes
Max Operating Radius
10 km
Max Flight Distance
43 km
Max Pitch Angle (Normal Mode)
25°
Max Pitch Angle (Sport Mode)
30°
Max Angular Velocity
200°/s
Operating Temperature
-20° to 50° C
Ingress Protection Rating
IP55
Motor Model
2611
Propeller Model
1364F foldable low-noise anti-ice propellers
RTK Model
Integrated on the aircraft
Beacon
Integrated on the aircraft
Wide (Camera Sensor)
1/1.3-inch CMOS, Effective Pixels
Medium Tele (Camera Sensor)
1/1.3-inch CMOS, Effective Pixels
Telephoto (Camera Sensor)
1/1.5-inch CMOS, Effective Pixels
Lens FOV
82°
Lens Equivalent Focal Length
24 mm
Lens Aperture
f/1.7
Lens Focus
1 m to ∞
ISO Range (Normal Mode)
ISO 100 to ISO 25600
Wide Camera (Night Scene Mode)
ISO 100 to ISO 409600
Midum Tele Camera (Night Scene Mode)
ISO 100 to ISO 409600
Tele Camera (Night Scene Mode)
ISO 100 to ISO 819200
Shutter Speed
2-1/8000 s
Max Photo Size Wide
8064 × 6048
Max Photo Size Medium Telephoto
8064 × 6048
Max Photo Size Telephoto
8192 × 6144
Video Coding Format
H.264/H.265
Coding Strategy
CBR, VBR
Resolution 4K
3840 × 2160@30fps
Resolution FHD
1920 × 1080@30fps
Supported File System
exFAT
Video Format
MP4 (MPEG-4 AVC/H.264)
Digital Zoom Telephoto
16x (112x hybrid zoom)
Infrared Illumination
FOV
Laser Rangefinding Range
1800 m (1 Hz) @20% reflectivity target
Thermal Camera Resolution
DJI Matrice 4T
Thermal Camera Pixel Pitch
12 μm
Thermal Camera Frame Rate
30 Hz
Thermal Camera Sensitivity
≤50mk@F1.0
Thermal Palette
White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Thermal Digital Zoom
28x
Infrared Wavelength
8um to 14um
Supported SD Cards
U3/Class10/V30

Complete Enterprise Package: IP55-rated Matrice 4TD drone with DJI Care, RC Plus 2, and rugged carry case.
Six-Sensor Payload Suite: Wide-angle camera, dual zoom, thermal, NIR, and laser rangefinder included.
Low-Light Performance: Performs exceptionally in low-light conditions with thermal imaging and upgraded NIR illumination.
Smart AI Object Detection: AI identifies people, vehicles, boats; supports custom recognition model integration.
Advanced Navigation System: GNSS+Vision, obstacle detection, and five-directional vision assist ensure flight precision.
Accessory Ecosystem Ready: Compatible with Dock 3, spotlight gimbal, voice speaker, and D-RTK 3 station.
Thermal Imaging Capability: High-res thermal camera detects heat through darkness, smoke, fog, or obscured conditions.
Mission-Critical Applications: Enables search and rescue, night surveillance, and infrastructure monitoring.
Multi-Sector Utility: Ideal for wildlife tracking, missing person recovery, and disaster response mapping.
Real-Time Data Delivery: Supports faster, smarter decisions in emergency, environmental, and industrial operations.
