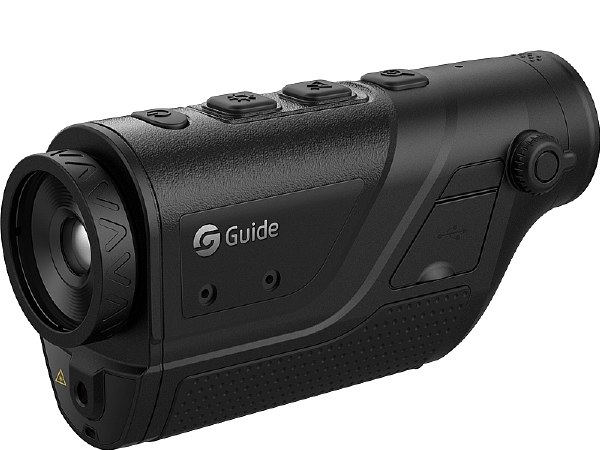

Guide Infrared TD210
Product Description
offers functional thermal rendering and good tracking and observation with its 256x192 12µm <50mK NETD and high resolution 1280x960 LCOS display.
Users can also make use of the TD210 ' s on-board features, such as Picture-in-Picture mode, which produces a magnified image within the viewfinder, allowing the user to hone-in on a subject whilst maintaining perfect awareness of the wider field of view. Users can also further enhance the TD210 ' s thermal imaging performance by way of the image enhancement mode, which uses algorithms to cleverly sharpen and further define the edges of objects allowing them to be better perceived by the viewer for improved recognition.
Features a built-in laser which appears as a targeting box in the display and works up to 200m. This allows spotters to indicate to other team members the viewed target or point of interest.
The thermal imaging monocular design is highly ergonomic with a grooved exterior with a highly grippable base and main control buttons that are raised and sit within a natural handhold position for maximum performance.
Specifications
Thermal Sensor: 256x192 12µm <50mK NETD
400m Detection Range (1.8x0.5m Target)
Digital Zoom: 1-2x
Focus: Electronic
Dioptre: -4~+2
Objective Lens: 10mm (f/1.0)
Exit Pupil: 17mm
Display: 1280x960 LCOS
Laser Distance: 200m
Battery Life: 8 hours
Battery Type: ICR18650 Cell (2200mAh 3.7v)
Rated: IP66
Weight: 360g
Additional Functions
Vanadium oxide thermal sensor
Built-In Laser
Built-In WiFi Module
2 Second Start-Up Time
Image Boost Mode
Picture-in-Picture Mode (PiP)
Three Scene Modes (Natural, Enhance, Highlight)
Five Colour Modes (White Hot, Black Hot, Red Hot, Iron Red, Blue Hot)
Remote Control Via App
Video Out
Contrast & Image Brightness Controls
Hot Tracking
Power Saving Features (Auto Stand-By, Auto Power-Off, Display Off)
Built-In Tripod Thread for Mounting
Ergonomic Design
Extra-Grip Base
Centralised Controls
Removable Lens Cap
Includes
Thermal Imager
Bag
Rechargeable Battery
MicroUSB Cable
Video Cable
Wrist Strap
Battery Charger
offers functional thermal rendering and good tracking and observation with its 256x192 12µm <50mK NETD and high resolution 1280x960 LCOS display.
Users can also make use of the TD210 ' s on-board features, such as Picture-in-Picture mode, which produces a magnified image within the viewfinder, allowing the user to hone-in on a subject whilst maintaining perfect awareness of the wider field of view. Users can also further enhance the TD210 ' s thermal imaging performance by way of the image enhancement mode, which uses algorithms to cleverly sharpen and further define the edges of objects allowing them to be better perceived by the viewer for improved recognition.
Features a built-in laser which appears as a targeting box in the display and works up to 200m. This allows spotters to indicate to other team members the viewed target or point of interest.
The thermal imaging monocular design is highly ergonomic with a grooved exterior with a highly grippable base and main control buttons that are raised and sit within a natural handhold position for maximum performance.
Specifications
Thermal Sensor: 256x192 12µm <50mK NETD
400m Detection Range (1.8x0.5m Target)
Digital Zoom: 1-2x
Focus: Electronic
Dioptre: -4~+2
Objective Lens: 10mm (f/1.0)
Exit Pupil: 17mm
Display: 1280x960 LCOS
Laser Distance: 200m
Battery Life: 8 hours
Battery Type: ICR18650 Cell (2200mAh 3.7v)
Rated: IP66
Weight: 360g
Additional Functions
Vanadium oxide thermal sensor
Built-In Laser
Built-In WiFi Module
2 Second Start-Up Time
Image Boost Mode
Picture-in-Picture Mode (PiP)
Three Scene Modes (Natural, Enhance, Highlight)
Five Colour Modes (White Hot, Black Hot, Red Hot, Iron Red, Blue Hot)
Remote Control Via App
Video Out
Contrast & Image Brightness Controls
Hot Tracking
Power Saving Features (Auto Stand-By, Auto Power-Off, Display Off)
Built-In Tripod Thread for Mounting
Ergonomic Design
Extra-Grip Base
Centralised Controls
Removable Lens Cap
Includes
Thermal Imager
Bag
Rechargeable Battery
MicroUSB Cable
Video Cable
Wrist Strap
Battery Charger
