Guide Infrared TRACKIR 25

Your Price: £1,399.95

Tell a Friend

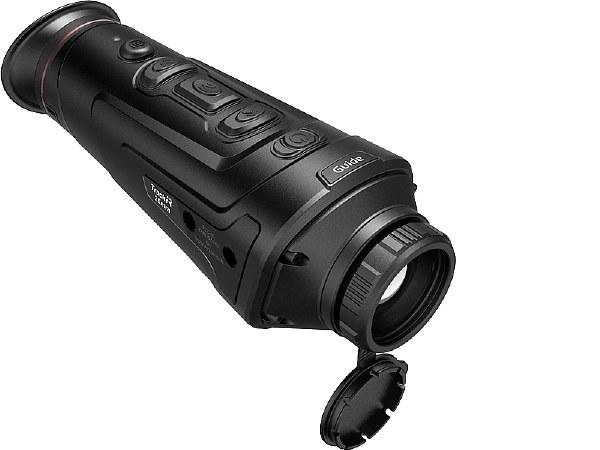

The TrackIR Series of thermal imaging monocular features a 400x300 17µm <50mK NETD thermal sensor & image enhancement for performance imaging combined with a 50Hz refresh rate and a 1280x960 HD LCOS display resulting in a smooth & crisp viewing experience. The TrackIR 25 has a native magnification of 1.7x, with a digital zoom of 4x, resulting in a 6.8x total magnification which alongside the units long distance detection (Humans: 700m, Vehicles: 1700m) makes this unit perfect as a thermal spotter.

Features a built-in stadiametric rangefinder for measuring the distance of known objects as well as Picture-in-Picture (PiP) mode which adds a zoomed-in display-box within the main viewfinder, this allows the user to hone-in on their subject whilst maintaining full awareness of the wider field of view.

The unit has an internal Li-Ion battery pack with an operating time of up to 5 hours and can be recharged via USB Cable.

The TrackIR Series can also connect to a smartphone via a dedicated App, this allows the unit to be operated remotely, share captured photos & videos as well as be live viewed.

◾Thermal Sensor: 400x300 17µm <50mK NETD
◾Spectral Range: 8µm-14µm
◾Detection Range: 700m (Human: 1.8mx0.5m), 1700m (Vehicle: 2.3mx2.3m)
◾Magnification: 1.7x-6.8x
◾Digital Zoom: 1x-4x (Smooth)
◾Focus: 25mm/F1.1 (Manual)
◾Field of View: 15.4°x11.6°
◾Display: 1280x960 (0.4") LCOS Colour
◾Dioptre: -4 to +2
◾Frame Rate: 50Hz
◾Colour Palettes: White hot, black hot, iron red, blue hot, red hot
◾Scene Modes: Enhanced, Highlight, Natural
◾Picture-in-Picture Mode: Yes
◾Power: Internal Li-Ion (2x18650 6000mAh)
◾Operating Time: >5h
◾Ports: Micro-USB-C, Video Out, Memory Card Slot
◾Internal Memory: 16GB
◾Operating Temperature: -10℃ to 50℃
◾Protection: IP66
◾Drop Rating: 1m
◾Weight: 470g
◾Dimensions: 192x65x71mm

Additional Functions
◾Photo & Video Capture
◾Hotspot Tracking
◾Stadiametric Rangefinder
◾Wi-Fi/ App
◾Compensation Modes: Auto comp./ shutter comp./ scene comp.
◾Indicate Box: Red, yellow, green (coordinates of the indicator box are adjustable)
◾Image Enhancement
◾Brightness & contrast
◾Auto power-off
◾Auto sleep
◾Super power-save mode
◾Indicator off

◾Thermal Imager
◾USB Cable
◾Micro HDMI Cable
◾Lens Cover
◾Wrist Strap
◾Lining Package
◾Quick Start Guide
